PROTON

PROTON

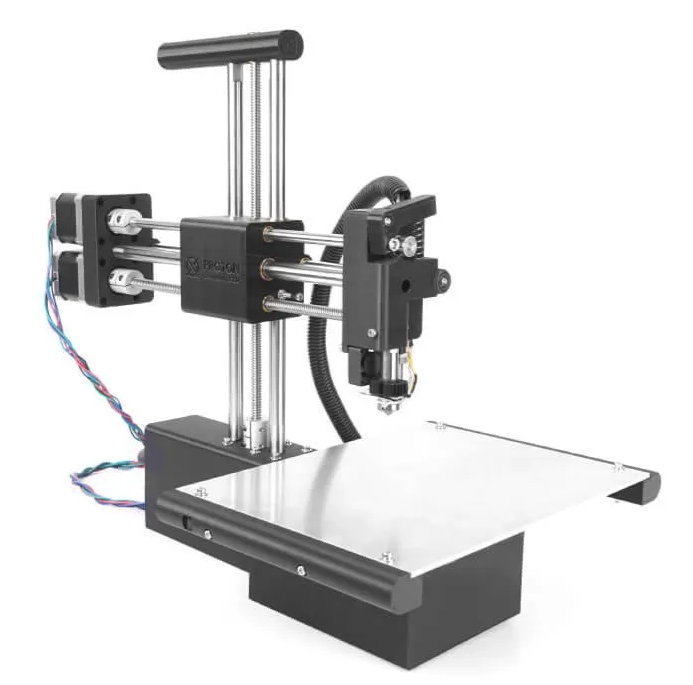

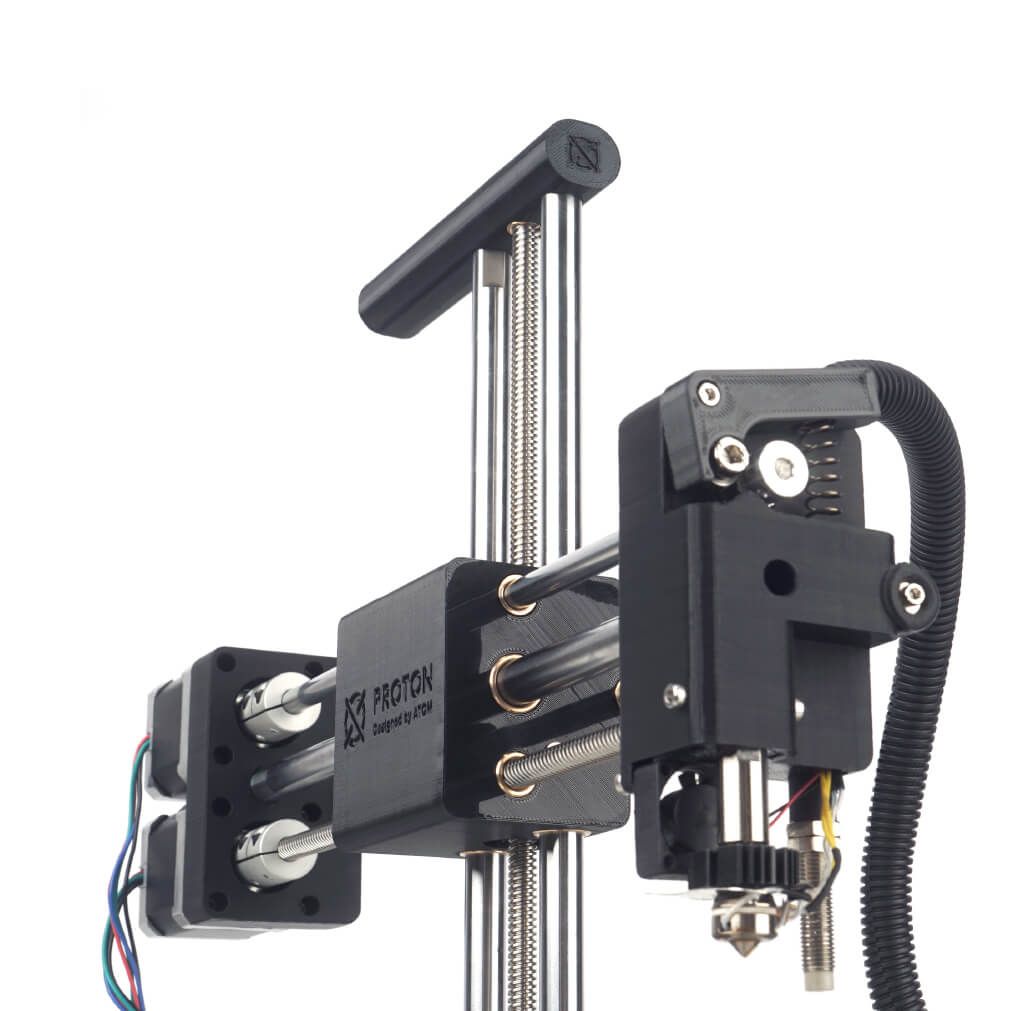

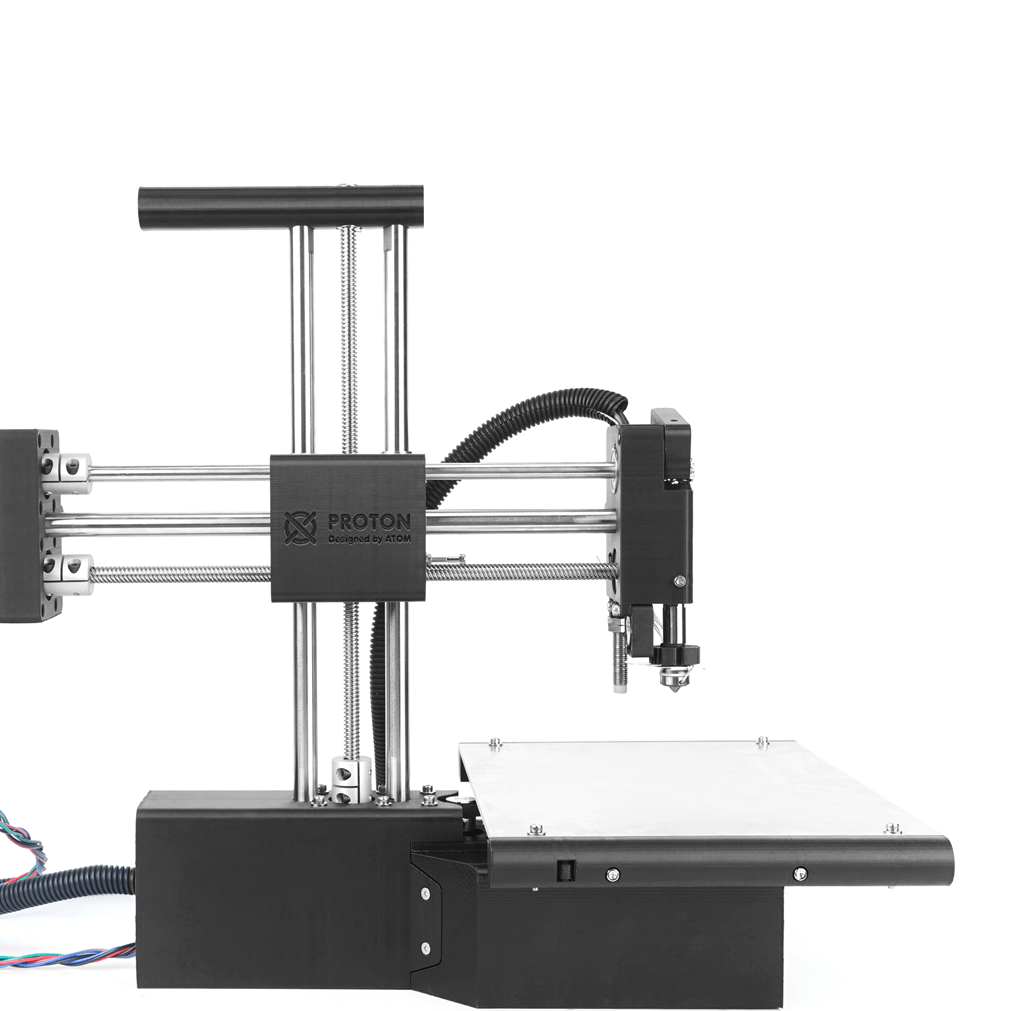

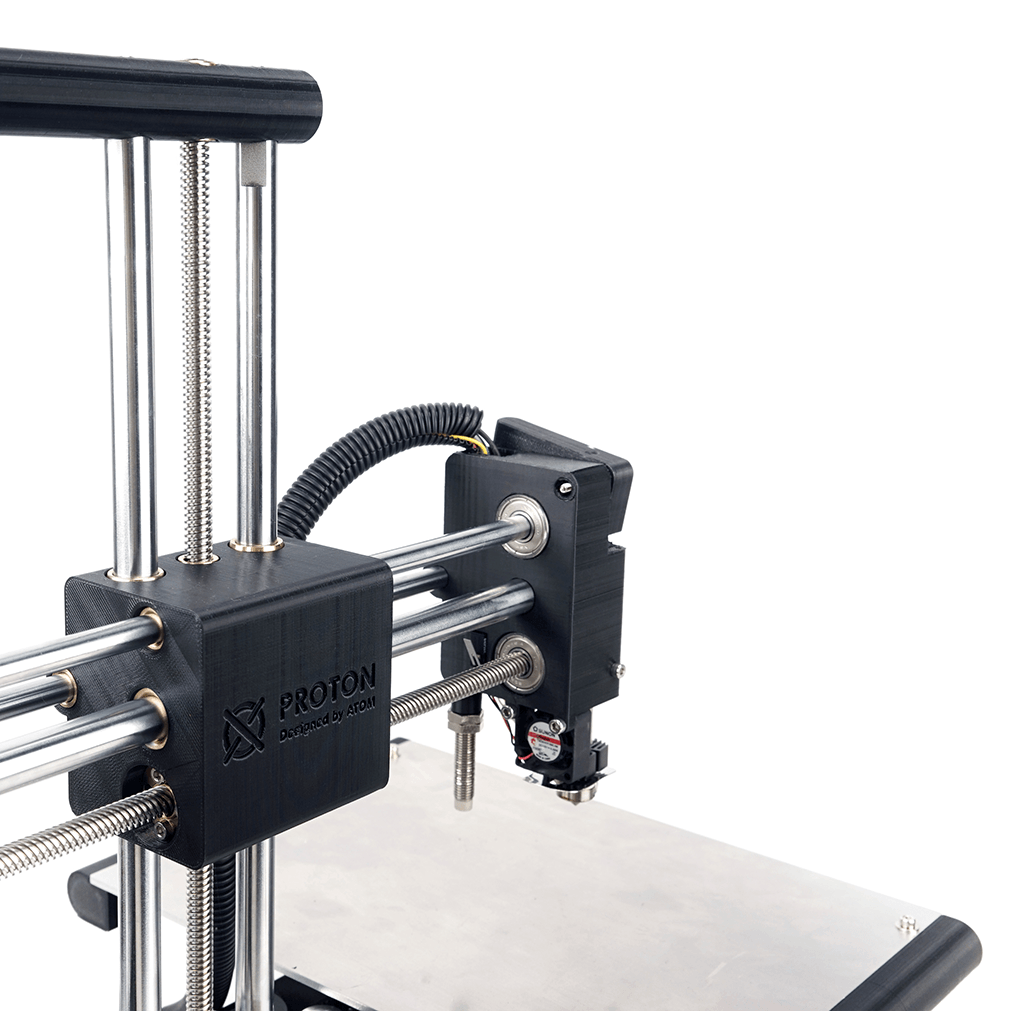

Open source 3D Printers by Layer One Labs
PROTON

Open Source CAD File Open Source Design

Download or modify directly on Onshape under creative commons license. (CC-BY-SA)
STL
Updated Mar.03.17
Onshape
Updated Mar.03.17

Firmware

Download or fork on GitHub.
Download
Updated Mar.03.17
GetHub
Updated Mar.03.17

Show and Tell finished product sharing

We want you to make, hack, and share Proton.
Facebook

Assembly

BOM parts list

Bill of Materials for Proton.
Google Doc
Updated Mar.07.17

Documents & Drawings Engineering Drawings

Take the journey of building your own Proton using our detailed assembly guide.
Exploded View
Updated Mar.07.17
Fabrication Details

Specifications

Physical

Bounding Volume
38 cm x 28 cm x 37 cm
Assembled Weight4.25 kg

Printing

Max Print Volume18 cm x 18 cm x 15 cm
Filament Types
Ø1.75 mm PLA
Layer Thickness
min 0.1mm / max 0.3mm
100 microns / 300 microns

Electrical

Input
AC 100 - 240V
Output
DC 12V / 90W

Resources

Reprap Wiki
Reprap Forum
