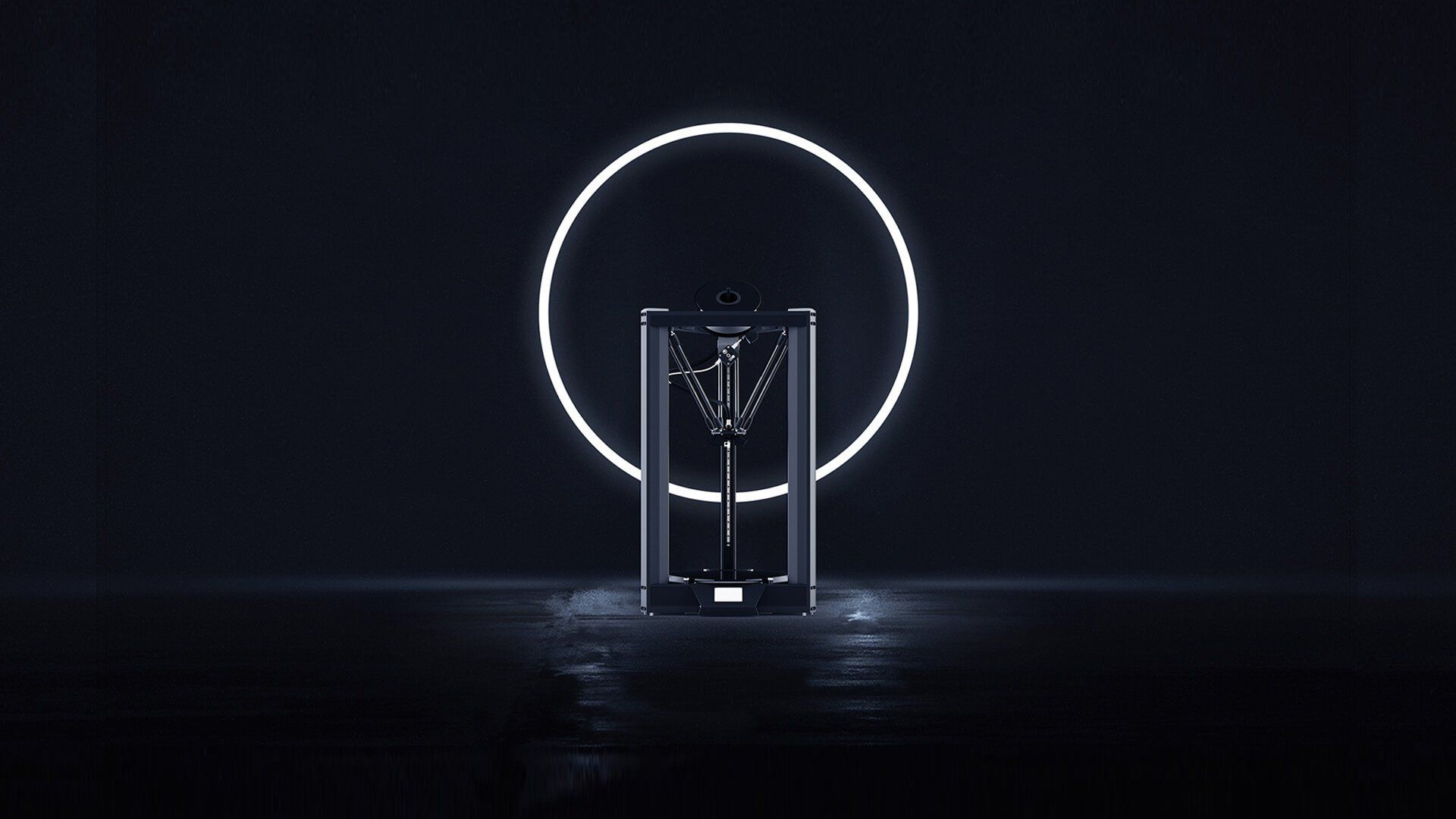

ATOM 3

ATOM 3/3 LITE

A new creative experience
understand more

Move smoothly and quietly
Good partner for indoor work
Button
Simple automatic correction
No worries for precise leveling
Button
Equipped with broken material detection
No worries about printing oversized pieces
Button
Touch screen
Intuitive
Button

The most reliable printing quality.

In the huge printing area, it inherits the excellent printing quality of Atom. Even if it is stacked quickly with 0.2mm layer height, the surface can be printed smoothly and emit a smooth gloss. The extremely fine precision is the pride of MIT.

The finest layer can be up to 0.05mm in height, with a resolution unmatched by ordinary desktop 3D printers. The picture above shows the well-known print file "Zombie Hunter Head" carved by Ola Sundberg. The performance under the thickness is suitable (from left to right are 0.3, 0.2, 0.1, 0.05mm layer height), and the naked eye can hardly recognize the 0.05mm layer height stack trace.

0.2 / 0.4 / 0.6mm
Three caliber replacement
Button
All metal nozzle
High temperature consumables application
Button
Atom x E3D cooperates with the original E3D factory to develop the most classic V6 in the history of 3D printing, straight to Atom 3 / Lite

Made in uk
Button
Atom x E3D cooperates with the original E3D factory to develop a high-speed and high-temperature nozzle Volcano directly on the Atom 3 / Lite

Made in uk
Button

* The Atom x E3D series nozzles are jointly designed and developed by Atom and E3D-Online Limited, a well-known British 3D printing nozzle manufacturer, and commissioned by E3D-Online Limited to produce in the UK.

Changeable modules, unlimited applications

The modular design of Atom 3 reserves space for future upgrades. The current original light curing module and dual extrusion module are in full swing, allowing users to cope with various printing needs and achieve multiple printers. The effect of work.

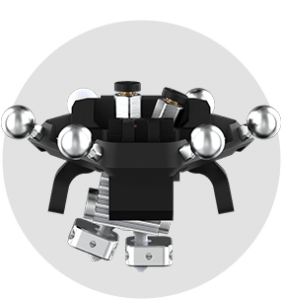

Dual extrusion module

It can print two-color or composite objects of two different materials, and the soluble support material supports more complex printing, making the creation more layered. The dual-in and double-out switching nozzles make you no longer waste time and wires on the refueling column.

In development

Atom 3 FDM series model detailed specification table

New MMA system

MODULAR MOTION ARCHITECTURE

The original MMA system can be compatible with Open Build and linear slides under the same structure. In addition to facilitating daily maintenance, it also reserves future expandability.

Use high specification parts

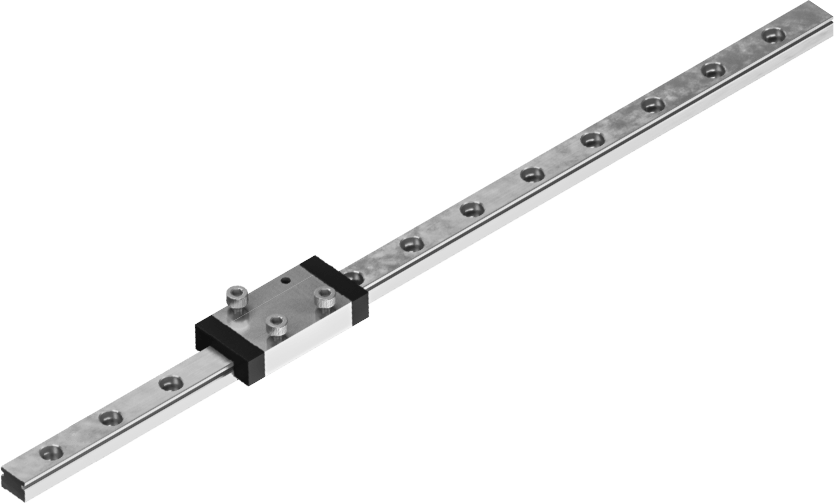

Japanese THK slide
Button
0.9 degree stepping motor
Button
Optical limit switch
Button
Full metal body
Button

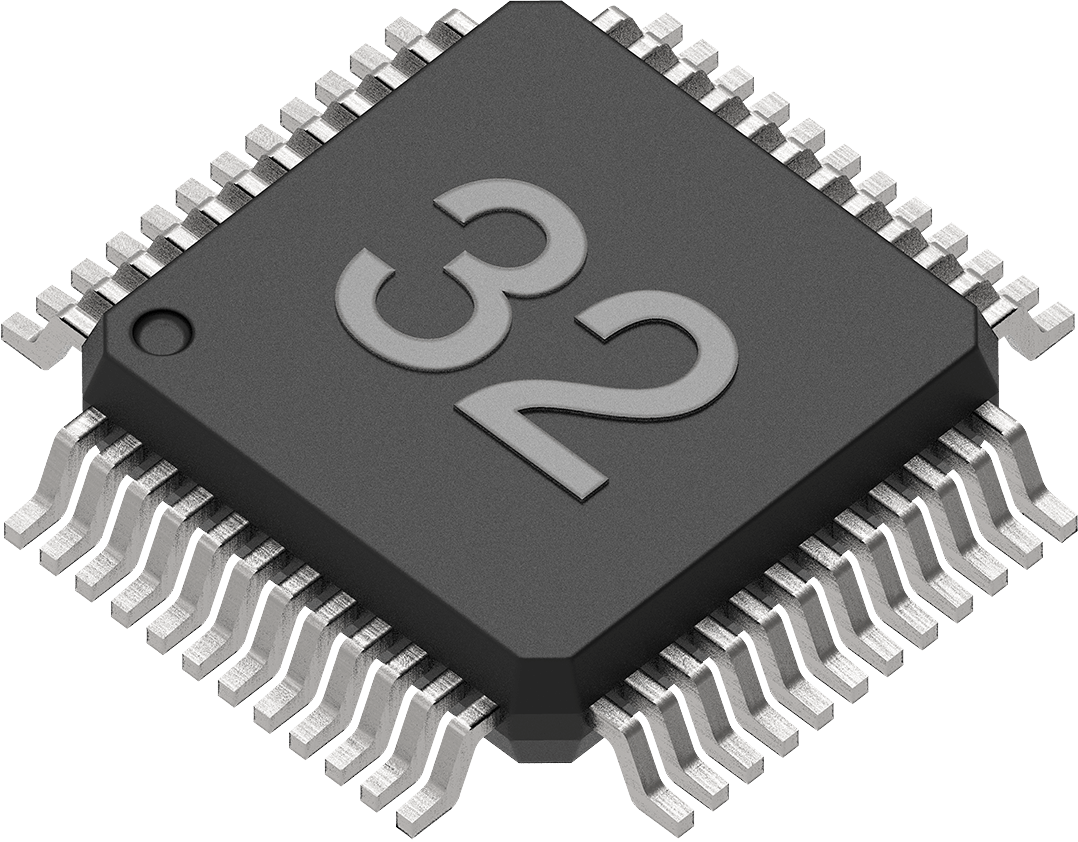

32-bit chip
Button
Carbon fiber rod
Button

ATOM 3

NT $ 88,000

Basic materials	ATOM 3
Print range	D270 x H340 mm center/300mm periphery
Machine size	453 x 461 x868 mm
Net machine	12kg
Printing speed	Move 150mm/s and print 100mm/s
Nozzle diameter	Standard 0.4mm, optional 0.2mm / 0.6mm
Print layer height	0.05mm - 0.3mm
Printing supplies	1.75mm all kinds of 3D printing consumables such as PLA, ABS, PETG, Nylon
power input	100~240VAC 50/60Hz
Printing temperature	230℃ lined throat (standard) 300℃ all metal throat (included)
Maximum temperature of hot bed	100℃

Humanized design
Operation interface	Touch the screen APP (iOS/Android)
Plane correction	Fully automatic multi-point correction instant adjustment
Working volume	約 50 dBA
Material break detection	Automatically pause printing when the material is cut off
Nozzle maintenance	30 seconds to disassemble the print head module
Nozzle temperature control correction	Automatic PID correction

Machine hardware
Control panel	32-bit processor 128 subdivision silent motor drive
Linear motion mechanism	THK Linear Slide
Three-axis stepping motor	0.9 degrees
Belt	American GATES made in Japan
Hot bed	Heated glass printing platform
Limit switch	Photoelectric switch
Feeding method	Bowden
Average power	40w printing 125w printing hot bed 3w standby
Package Size	525 x 525 x940 mm
